Product Description

The components of the self aligning ball bearing include two rows of balls,

a cage, an inner ring, and an outer ring with a common concave sphered raceway.This type of bearings is self-aligning and insensitive to angular misalignments of the shaft relative to the housing. The bearings are produced in several design: open bearings with the basic design, sealed bearings, open bearings with an extended inner ring.The self alignning ball bearings have the lowest friction of all rolling bearings.The bearings are available with a cylindrical bore or with a tapered bore in certain size ranges.

Suffix definitions of Self-aligning ball bearings:

C3: radial clearance than ordinary clearance

K: 1/12 taper tapered bore

K30: 1/30 taper tapered bore

M: Ball guided machined brass cage

2RS: with both ends of closures

Bearing Number	d mm	D mm	B mm
2300	10	35	17
2301	12	37	17
2302	15	42	17
2303	17	47	19
2304	20	52	21
2305	25	62	24
2306	30	72	27
2307	35	80	31
2308	40	90	33
2309	45	100	36
2310	50	110	40
2311	55	120	46
2312	60	130	46
2313	65	140	48
2314	70	150	51
2315	75	160	55
2316	80	170	58
2317	85	160	60
2318	90	190	64
2319	95	200	67
2320	100	215	73
2321	105	225	77
2322	110	240	80

The 2300 Series Self-aligning Ball Bearings are engineered to deliver exceptional performance and reliability in a wide range of industrial applications. These bearings are designed to accommodate misalignment between the shaft and housing, ensuring smooth operation even under challenging conditions. The self-aligning feature is particularly beneficial in applications where shaft deflection or mounting errors are common, reducing the risk of premature wear and failure.

Constructed from high-quality materials, the 2300 Series Self-aligning Ball Bearings offer excellent durability and resistance to wear, making them ideal for heavy-duty applications. The unique design includes two rows of balls and a common sphered raceway in the outer ring, which allows for angular misalignment of the inner ring relative to the outer ring. This design not only enhances the bearing's ability to handle misalignment but also contributes to lower friction and reduced heat generation.

The 2300 Series Self-aligning Ball Bearings are available in various sizes and configurations to meet the specific needs of different applications. Whether used in agricultural machinery, conveyor systems, or industrial fans, these bearings provide reliable performance and extended service life. With their robust construction and self-aligning capabilities, the 2300 Series bearings are a trusted choice for engineers and maintenance professionals seeking to optimize the performance and longevity of their equipment.

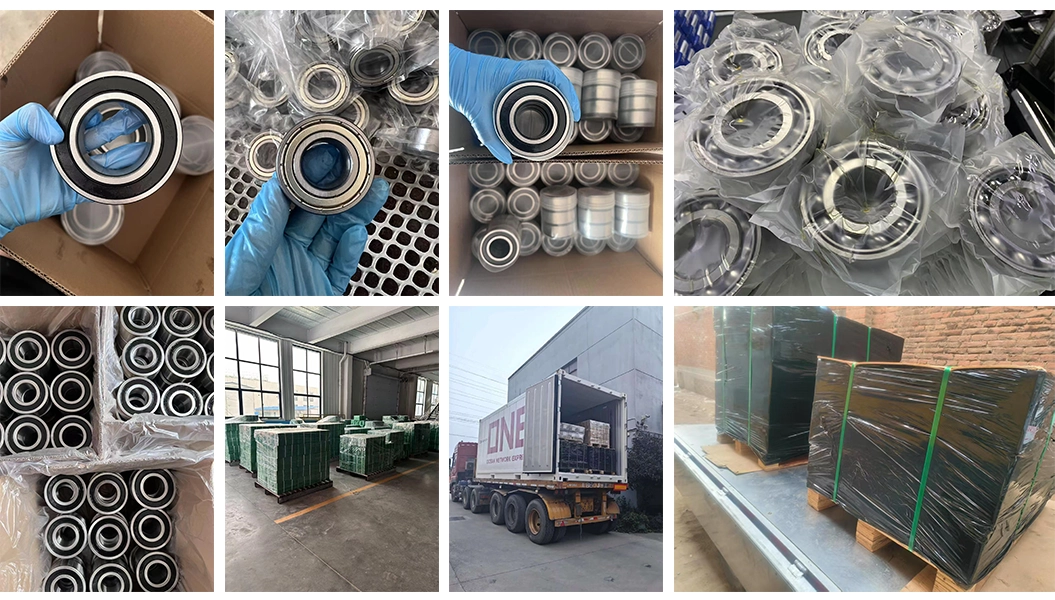

Packaging and shipping
