quality SONL Series Type Pillow Block Bearings

SONL Series Type Pillow Block Bearings are engineered to offer reliable, long-lasting performance in heavy-duty industrial environments. These bearings come housed in a robust pillow block made of high-quality cast iron, ensuring superior strength and protection against external factors such as dust, dirt, and moisture.

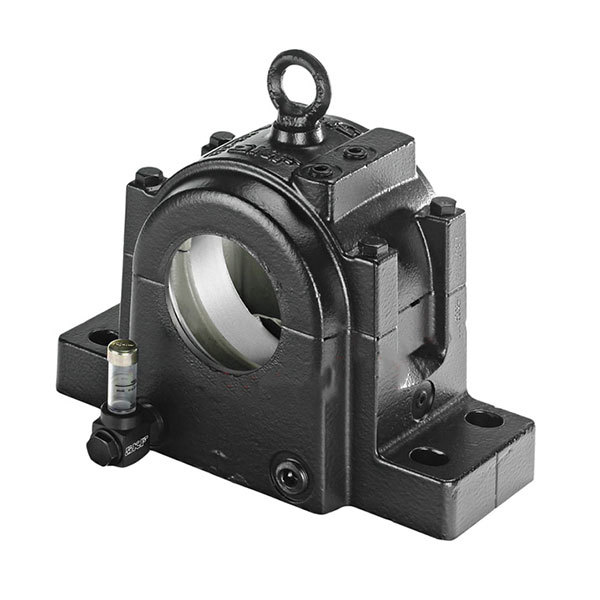

SONL plummer (pillow) block housings are specially designed for oil lubrication. They can accommodate high temperatures and bearings operating at high speeds. They have a strong, stiff design and are characterized by a number of built-in features that maximize the effects of the lubricant and extend bearing service life. SONL housings can be found in applications ranging from fans and flywheels to paper machines and emergency power generators.

Designation of appropriate components	Shaft diameter	Principal housing dimensions
		Width	Height	Centre height	Length
	da[mm]	A[mm]	H[mm]	H1[mm]	L[mm]
SONL 217-517 + 2217 K + HA 317	74.613	163	230	125	330
SONL 217-517 + 22217 K + HA 317	74.613	163	230	125	330
SONL 217-517 + C 2217 K + HA 317 E	74.613	163	230	125	330
SONL 217-517 + 2217 K + H 317	75	163	230	125	330
SONL 217-517 + 22217 K + H 317	75	163	230	125	330
SONL 217-517 + C 2217 K + H 317 E	75	163	230	125	330
SONL 218-518 + 2218 K + H 318	80	170	245	135	360
SONL 218-518 + 22218 K + H 318	80	170	245	135	360
SONL 218-518 + C 2218 K + H 318 E	80	170	245	135	360
SONL 218-518 + 2218 K + HA 318	80.963	170	245	135	360
SONL 218-518 + 22218 K + HA 318	80.963	170	245	135	360
SONL 218-518 + C 2218 K + HA 318 E	80.963	170	245	135	360
SONL 220-520 + 2220 K + HA 320	87.313	186	270	145	400
SONL 220-520 + 22220 K + HA 320	87.313	186	270	145	400
SONL 220-520 + C 2220 K + HA 320 E	87.313	186	270	145	400
SONL 220-520 + 2220 K + H 320	90	186	270	145	400
SONL 220-520 + 22220 K + H 320	90	186	270	145	400
SONL 220-520 + C 2220 K + H 320 E	90	186	270	145	400
SONL 222-522 + 2222 K + H 322	100	213	290	160	420
SONL 222-522 + 22222 K + H 322	100	213	290	160	420
SONL 222-522 + C 2222 K + H 322 E	100	213	290	160	420
SONL 222-522 + 2222 K + SNW 22X3 15/16	100.013	213	290	160	420
SONL 222-522 + 22222 K + SNW 22X3 15/16	100.013	213	290	160	420
SONL 222-522 + C 2222 K + HA 322 E	100.013	213	290	160	420
SONL 224-524 + 22224 K + HA 3124	106.363	245	315	170	420
SONL 224-524 + C 2224 K + HA 3124 L	106.363	245	315	170	420
SONL 224-524 + 22224 K + H 3124	110	245	315	170	420
SONL 224-524 + C 2224 K + H 3124 L	110	245	315	170	420
SONL 226-526 + 22226 K + HA 3126	112.713	255	335	180	450
SONL 226-526 + C 2226 K + HA 3126 L	112.713	255	335	180	450
SONL 226-526 + 22226 K + H 3126	115	255	335	180	450
SONL 226-526 + C 2226 K + H 3126 L	115	255	335	180	450
SONL 228-528 + 22228 K + H 3128	125	260	355	190	500
SONL 228-528 + C 2228 K + H 3128 L	125	260	355	190	500
SONL 228-528 + 22228 K + HA 3128	125.413	260	355	190	500
SONL 228-528 + C 2228 K + HA 3128 L	125.413	260	355	190	500
SONL 230-530 + 22230 K + HA 3130	131.763	260	375	200	540
SONL 230-530 + C 2230 K + HA 3130 L	131.763	260	375	200	540
SONL 230-530 + 22230 K + H 3130	135	260	375	200	540
SONL 230-530 + C 2230 K + H 3130 L	135	260	375	200	540
SONL 232-532 + 22232 K + HA 3132	138.113	278	406	215	560
SONL 232-532 + 22232 K + H 3132	140	278	406	215	560
SONL 234-534 + 22234 CCK/W33 + H 3134	150	310	440	235	610
SONL 234-534 + C 2234 K + H 3134 L	150	310	440	235	610
SONL 234-534 + 22234 CCK/W33 + HA 3134	150.813	310	440	235	610
SONL 234-534 + C 2234 K + HA 3134 L	150.813	310	440	235	610
SONL 236-536 + 22236 CCK/W33 + H 3136	160	320	455	245	650
SONL 236-536 + 22236 CCK/W33 + HA 3136	163.513	320	455	245	650
SONL 238-538 + 22238 CCK/W33 + H 3138	170	330	480	260	720
SONL 238-538 + C 2238 K + H 3138	170	330	480	260	720
SONL 238-538 + 22238 CCK/W33 + HA 3138	176.213	330	480	260	720
SONL 238-538 + C 2238 K + HA 3138	176.213	330	480	260	720
SONL 240-540 + 22240 CCK/W33 + H 3140	180	338	510	275	730
SONL 240-540 + 22240 CCK/W33 + HA 3140	182.563	338	510	275	730
SONL 244-544 + 22244 CCK/W33 + OH 3144 H	200	358	565	305	820
SONL 244-544 + C 2244 K + OH 3144 H	200	358	565	305	820
SONL 248-548 + 22248 CCK/W33 + OH 3148 H	220	368	625	340	900

SONL Series Type Pillow Block Bearings are engineered to offer reliable, long-lasting performance in heavy-duty industrial environments. These bearings come housed in a robust pillow block made of high-quality cast iron, ensuring superior strength and protection against external factors such as dust, dirt, and moisture. The SONL series is designed to deliver excellent load-carrying capacity, making it an ideal choice for various machinery and applications that demand superior reliability.

The SONL Series Type Pillow Block Bearings feature a unique design that allows for easy installation and removal, reducing maintenance time and downtime. With their solid construction and ability to withstand extreme conditions, they are suitable for applications in agriculture, mining, and conveyor systems. The SONL series can be equipped with either standard or tapered bore bearings, providing flexible options depending on the specific needs of the application.

Designed to provide low-friction performance, the SONL Series Type Pillow Block Bearings reduce energy consumption, improve efficiency, and enhance the longevity of machinery. Their self-aligning properties ensure that even under misalignment, the bearing can continue to function smoothly, making them ideal for environments where precision is crucial. Whether in heavy-duty manufacturing or automated systems, SONL series pillow block bearings deliver the performance and reliability that industrial applications require.
